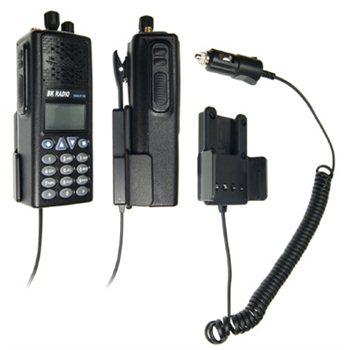

Relm BK KNG - Vehicle Charging Holder with Cigarette Lighter Plug ProClip 530140
|
Item Number: 530140
|
About the charging holder
|
|
| The charging holder have a custom made cradle with accessory plug adapter permanently attached to create a docking type connection. It works with or without the belt clip on back of radio. The holder works in 12 volt and 24 volt vehicles and comes with a cigarette lighter plug for direct connection to the 12/24 V power outlet in the vehicle. The charger works with Li-Ion or Li-Poly batteries. It provides rapid to trickle charging. The battery can also be charged separately in the holder (without the radio). The holder has a LED indicator to show that charging is in progress, red when charging and green when fully charged. The holder can be used in commercial vehicles, personal vehicles, public agency vehicles, emergency vehicles, utility vehicles, etc., and mounts to any flat surface or mounting brackets such as vehicle dashboard mounts, floor mounts, pedestal mounts, handlebar mounts, table stands or walls. |
 |
|
Holder Specifications
|
|
| Dimensions |
89 x 63.5 x 25.4 mm / 3.5 x 2.5 x 1 inches |
|---|
| Weight |
0.15 kg / 0.35 lbs |
|---|
| Cable Length |
100 cm / 3 feet |
|---|
|
|
|
Charging Specifications
|
|
Lithium charging is based on CVCC (Constant Voltage Constant Current). The charging procedure is as follows:
If the battery is empty or has low charge a constant current charges the battery until the cell voltage reaches 8,4V. The LED emits red light. Hereafter the charge continues until the current goes down to 0A. The battery is now full and stays fully charged. A special designed voltage controller is monitoring that the cell voltage is within limit. The LED emits green light.
If the battery is used without disconnecting the charger, current is supplied directly resulting in a fast recovery. |
|
|
|
| Battery Chemistry |
Li-Ion or Li-Polymer |
|---|
| Input Voltage |
11-30 V |
|---|
| Charging Voltage |
Up to 12.6 V |
|---|
| Timer for Max. Charging |
Automatic, stops at 12.6 V |
|---|
| Max. Charging Time |
2-3 hours depending on battery capacity |
|---|
| Rapid Charge |
1.2 A +/- 5% |
|---|
| Trickle Charge |
0-50 mA |
|---|
| LED Charging Indicator |
LED Red to Green indicator |
|---|
| Temperature Control |
Controlled by battery |
|---|
| RoHS Compliant |
Yes |
|---|
| Input Transient Protected |
Withstands +150V & -450V. A 2,5A fuse is mounted on the incoming supply |
|---|
| Output Short Circuit Protected |
The charger will supply a maximum current of 1.2 A which protects both the charger and the connected equipment |
|---|
|
|
|
|
|
